JI 19-155-1090

Wall Profiles

Trustpilot

The JI 19-155-1090 Wall is a ribbed steel cladding sheet designed primarily for agricultural building facades. It is also suitable for industrial and commercial applications, providing a strong and practical solution. This wall profile is available in various sizes and finishes, ensuring maximum adaptability for different construction needs.

Configure product Technical Specification Recommended Accessories View in 3D

  • Fast Delivery

  • Free Pick-Up

JI 19-155-1090
Calculate delivery cost

Need help?

Do you still have questions or doubts? Do not hesitate to contact us!

Specifications

Technical

Measurements

Length
2000 - 10000 mm
Width
1090 mm
Height
19.0 mm
Thickness - Weight
0.5 mm - 4.39 kg/m²
Thickness - Weight
0.6 mm - 5.27 kg/m²
Thickness - Weight
0.75 mm - 6.72 kg/m²

Reference Standards

Galvanized steel
EN 10346:2015 - tolerances according to EN 10143:2006
Tolerances
EN 508-1:2021 (Geometry)
Calculations
EN 1993-1-3:2006

Characteristics

Material
Steel S280 GD

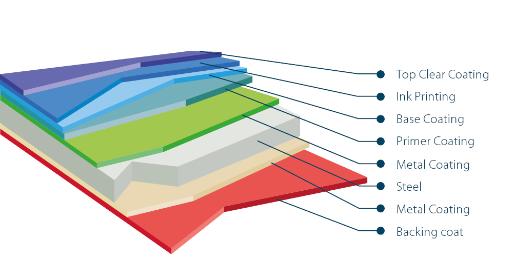

Coil coating
EN 10169:2022

Designed to withstand even the most demanding and aggressive environments, Colorcoat HPS 200 Ultra® pre-finished steel provides super durability and corrosion resistance.

What’s included

Accessories are not included and can be ordered separately

Insulation table

Thickness RW U Uc product.detail.specifications.insulationTable.ucWall product.detail.specifications.insulationTable.ucPartition Ψ product.detail.specifications.insulationTable.psiWall product.detail.specifications.insulationTable.psiPartition R RC product.detail.specifications.insulationTable.rei Ew EI Direction Orientation

Downloads

Documents

Documentation

Certificate(s)

Technical Drawings
